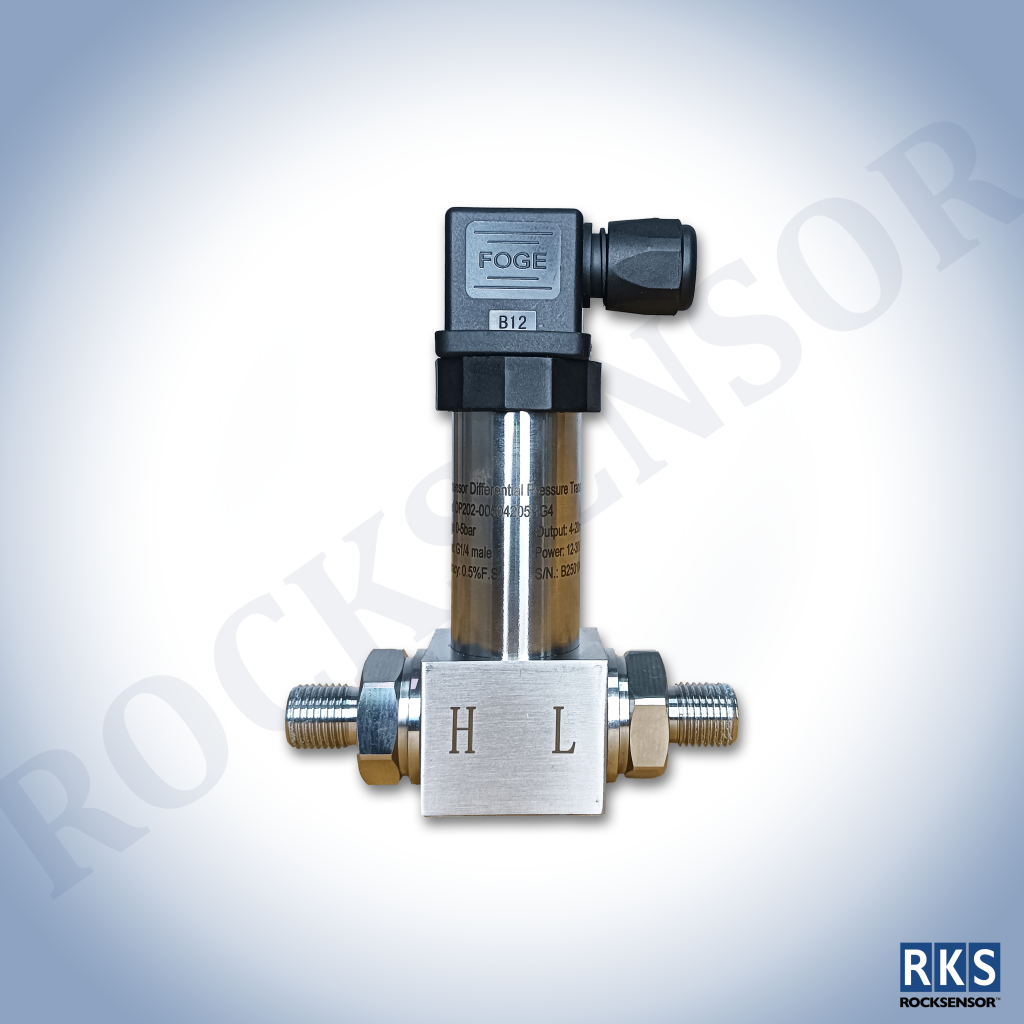

RP202-DPT Miniature Differential Pressure Transmitter
Low cost differential pressure transducer adopts diffusion silicon differential pressure sensor and stainless steel case,
the two pressure interfaces can be connected on the measured pipeline or impulse line, suitable for measuring
differential pressure of gas and liquid.
A wide range of process connection and electrical connection options are available to meet almost requirement. convert it into 4 line description of product
Key Features
- Measuring ranges from 0.1bar~35bar
- Maximum static pressure: 10Mpa
- Accuracy: ±0.25%FSO or ± 0.5%FSO
- Calibrated and temperature compensated
- Piezoresistive pressure sensor design
Specifications
- Pressure Range: 0-1~10 bar
- Overpressure: 1.5xFS
- Operating Temperature Range: -20 ~ +85(standard), -20 to +150°C
- Output Signal:4~20mA, 0~5VDC, 0~10VDC
- Power Supply(Vs): 12~36VDC
- Load Resistance 10kΩ (For voltage output)
- Media Compatibility: All media compatible with 316L stainless steel
- Housing: SS304(Std.)/ SS316 (optional)
- Diaphragm: SS316L
- Protection : IP65 (Standard)
Key Applications
- HVAC Systems
- Industrial Process Control
- Water & Wastewater Treatment
- Boiler and Burner Systems
- Pharmaceutical Industry
- Oil & Gas Industry
- Power Plants
- Automotive Testing Equipment
- Food & Beverage Industry
- Building Automation Systems
