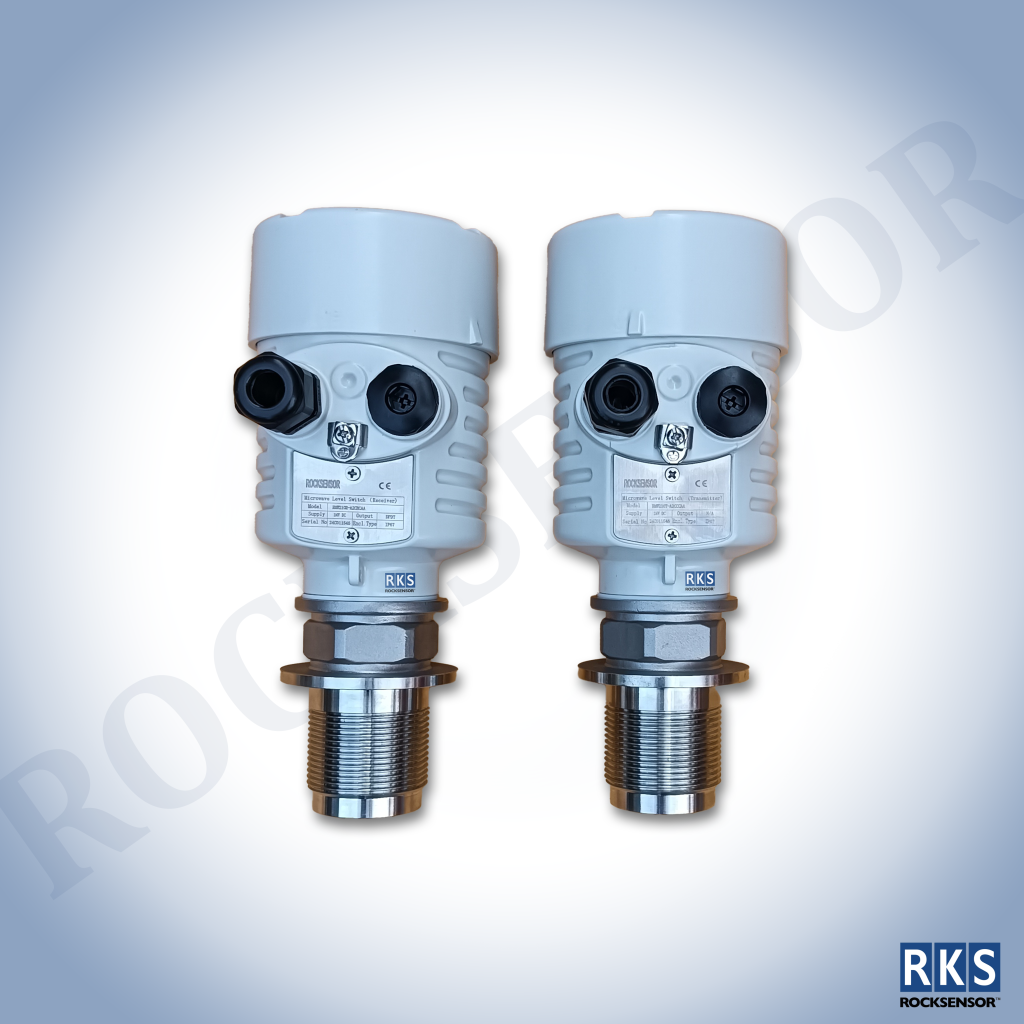

RMS7200
Microwave Barrier Switch

The RMS7200 Microwave Barrier Switch is a level switch featuring an emitting unit and a receiving unit installed face-to-face. The emitting unit sends a continuous, low-power microwave beam to the receiving unit. When a medium is present between the units, the signal is dampened, and this change is detected by the built-in electronics module, which then converts it into a switching command.

Key Features

  • Energy and frequency monitoring and predicting
  • Adherence warming
  • Electronic components temperature monitoring
  • Hardware breakdow self-checking
  • Multi-band output
  • EMC capability
  • Connectable to LCD display unit
  • Remote display of history energy curve
  • Gas ex-proof and dust ignition-proof
  • Digital energy display

Specifications

  • Measuring Range: 0 ~ 200m
  • Frequency: 22 ~ 24GHz
  • Temperature range: 120°C (upto 500°C)
  • Protection: IP67








Key Applications

  • Flow/no flow detection
  • Chute blockage detection
  • High and low level detection
  • Conveyer belt detection
  • Track/car overload detection
  • Crane anti-collision detection
