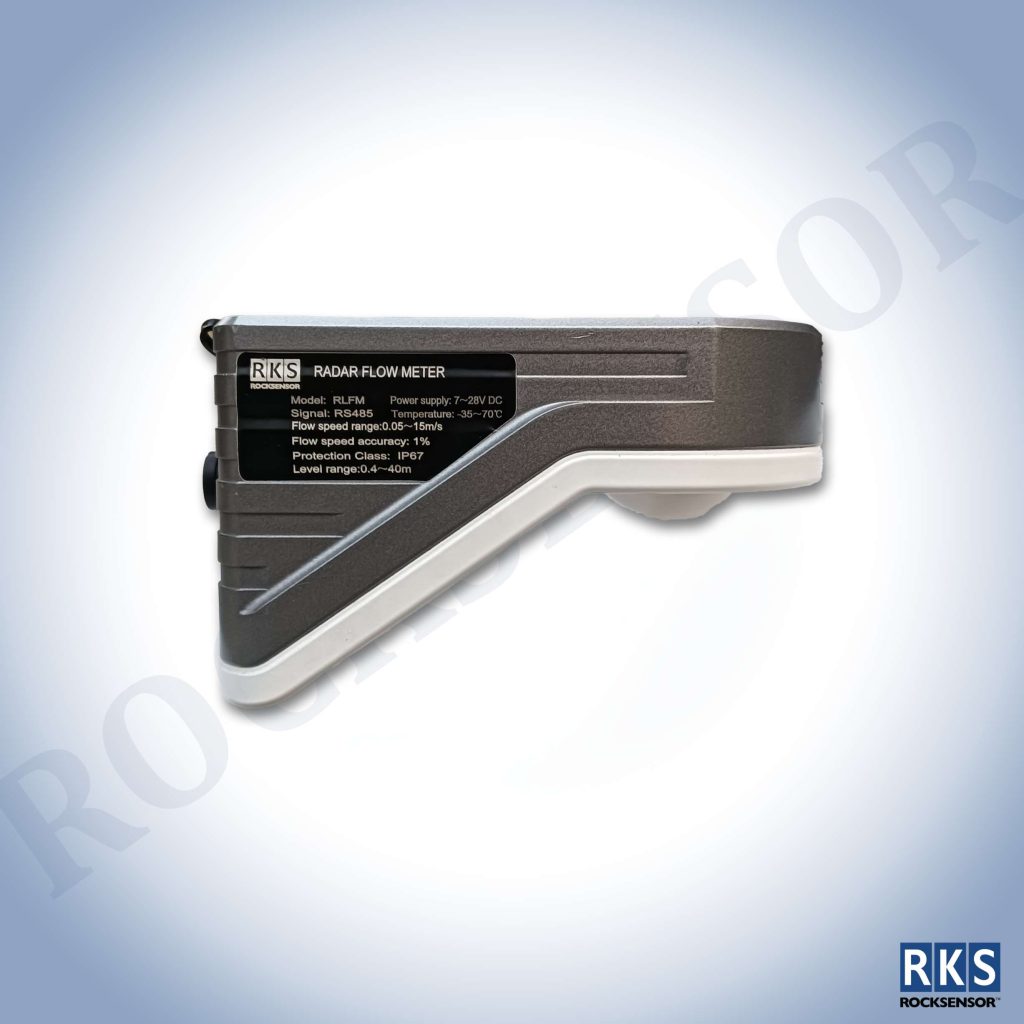

RLF200
Radar Level Flow Meter

The Radar Level Flowmeter utilizes advanced radar technology to deliver precise measurement of water level and flow velocity. Its compact and robust design ensures easy installation and reliable performance, even in harsh outdoor and extreme weather conditions.

Engineered for open-channel flow monitoring, it is ideally suited for applications such as rivers, canals, dams, and irrigation systems.

RLF200

Key Features

  • Non-contact measurement of water level and flow
  • IP68-rated waterproof design for reliable outdoor use
  • Built to withstand extreme weather conditions
  • Small & Compact apperance
  • Integrated reverse-polarity protection
  • Built-in lightning and over-voltage protection
  • Supports Modbus-RTU communication protocol
  • Bluetooth-enabled for easy configuration and monitoring

Specifications

  • Speed range: 0.1 ~ 30m/s
  • Speed measurement accuracy: ±0.01m/s
  • Maximum ranging range: 60m
  • Communication Interface RS485
  • Ranging accuracy: ±1mm
  • Power supply range 9 ~ 28VDC
  • Protection level IP68
  • Operating temperature (-)30 ~ 70°
  • Ranging antenna beam angle 6°
  • Speed measurement pitch angle : 0° ~ 80°

Key Applications

  • Natural water resource monitoring
  • Open channel flow measurement
  • Surface water monitoring and management
  • Irrigation water measurement and control
  • Wastewater treatment and discharge monitoring
  • Industrial water supply systems
