Gauge

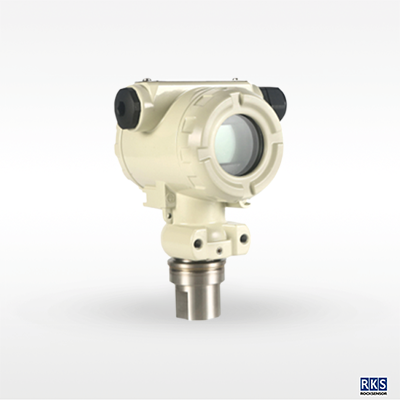

RP102 Gauge Pressure Transmitter

Suitable to measure liquid, gas or steam flow as well as liquid level, density and pressure.

Key Features
  • Range 0 – 40 MPa
  • Reference Accuracy up to 0.1%
  • Overload Protection up to 500 bar
  • Stainless Steel/ Hastelloy C Diaphragm Material
  • Silicone/ Fluorine Oil as Filing Fluid
Specifications:
  • Stability: ±0.1%URL/ 5 years.
  • Housing Protection Level: IP67.
  • Housing: Aluminum with epoxy resin coat.
  • Indicator : LCD backlit display.
  • Output : 2-Wire/ 4-20 mADC Analog.
  • Communication Protocol : RS485.
  • Configuration : Through Push Button (Zero & Span).
Key Applications :
  • Oil and Gas sector

  • Chemicals

  • Cement

  • Power

  • Metal

  • Water

  • Pulp and Paper

  • Pharmaceutical

  • Others (Agriculture, Fertilizer, Textiles, Plastics and HVAC)
