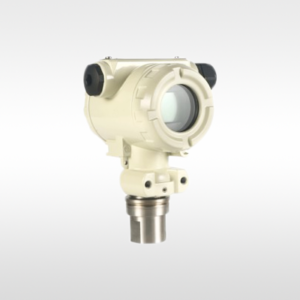

RP103 Absolute Pressure Transmitter

Suitable to measure liquid, gas or steam flow as well as liquid level, density and pressure.

Key Features
  • Range: 0 – 3 MPa
  • Reference Accuracy up to 0.1%
  • Overload Protection up to 500 bar
  • Stainless Steel/ Hastelloy C Diaphragm Material
  • Silicone/ Fluorine Oil as Filing Fluid
Specifications:
  • Stability: ±0.1%URL/ 5 years
  • Housing Protection Level: IP67
  • Housing: Aluminum with epoxy resin coat
  • Indicator: LCD backlit display
  • Output: 2-Wire/ 4-20 mADC Analog
  • Communication Protocol: RS485
  • Configuration: Through Push Button (Zero & Span)
Key Applications :
  • Oil and Gas sector

  • Chemicals

  • Cement

  • Power

  • Metal

  • Water

  • Pulp and Paper

  • Pharmaceutical

  • Others (Agriculture, Fertilizer, Textiles, Plastics and HVAC)
